6-inch well also all stainless steel, cast iron, bronze casting, floating impeller sand resistant

Download Borehole 6-inch well Range Technical Catalogue

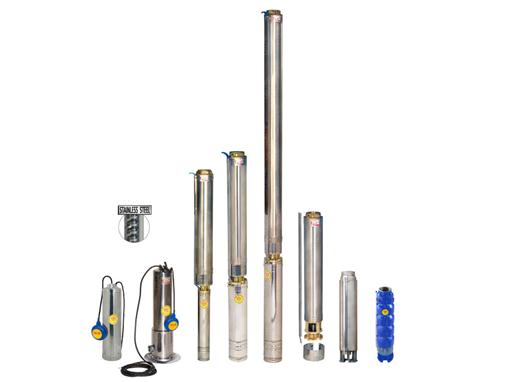

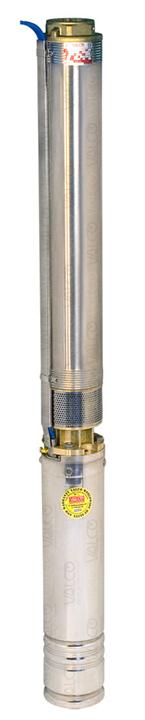

view of 6-inch well range
view of 6-inch well range
6-inch well with mixed flow impeller
6-inch well with mixed flow impeller

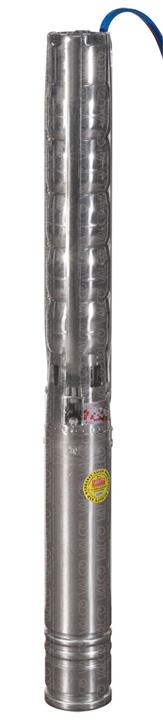

6-inch well all stainless steel with mixed flow impeller
6-inch well all stainless steel with mixed flow impeller

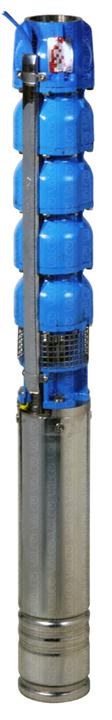

6-inch well cast iron with mixed flow impeller
6-inch well cast iron with mixed flow impeller

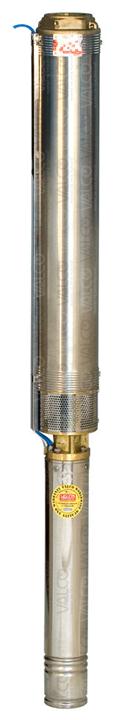

6-inch well pump with rewindable competitive 4"submersible electric motor
6-inch well pump with rewindable competitive 4"submersible electric motor

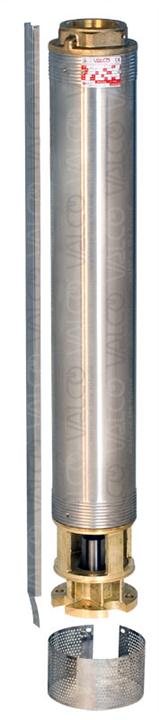

6-inch well pump end (all wetted parts) to NEMA Standard with head in brass
6-inch well pump end (all wetted parts) to NEMA Standard with head in brass

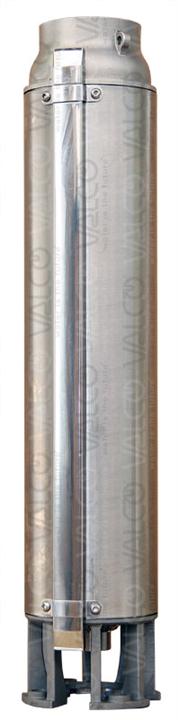

6" well pump end (all wetted parts) to NEMA stainless steel head
6" well pump end (all wetted parts) to NEMA stainless steel head
6" well pump end (all wetted parts) to NEMA stainless steel head radial impeller
6" well pump end (all wetted parts) to NEMA stainless steel head radial impeller

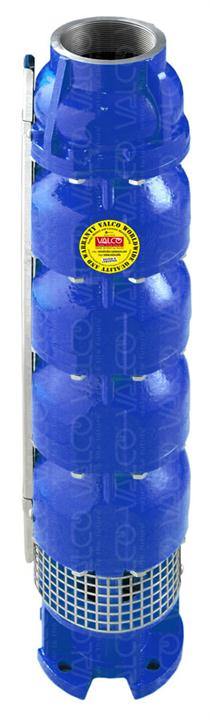

6" well pump end (all wetted parts) to NEMA all cast iron mixed flow impeller
6" well pump end (all wetted parts) to NEMA all cast iron mixed flow impeller

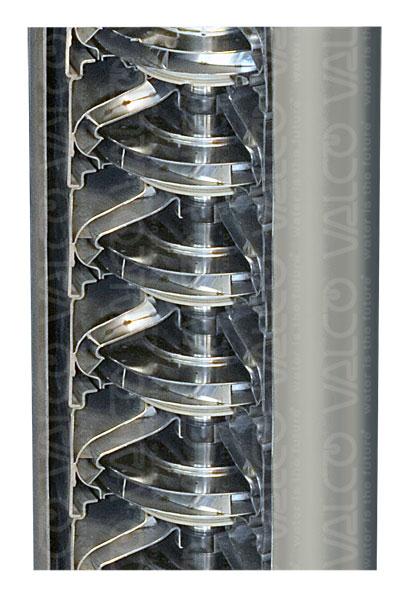

inside view of stainles steel 304 and 316 execution
inside view of stainles steel 304 and 316 execution

6" Vera™ - SUBMERSIBLE MULTISTAGE BOREHOLE ELECTRIC PUMPS FOR DEEP WELLS for min. 6-inch COMPLETE WITH 2 POLE MOTORS TO NEMA STANDARD.

PUMP CONSTRUCTION
Executions:
P = noryl and polycarbonate corrosion and abrasion resistant and non toxic with Pump and Motor Casing in Stainless Steel. Pump Head and Motor Bracket in in Brass.
S = All Stainless Steel.
G = Cast Iron with Motor Casing in Stainless Steel.
-Built-in check non-return valve to protect the pump against water hammer.

SUBMERSIBLE ELECTRIC MOTORS
4-inch
- Rewindable
- Oil cooled (prefilled with food grade additives to protect against freeze and rust).
6-inch
- Rewindable
- Oil cooled (prefilled with food grade additives to protect against freeze and rust).
8-inch
- Rewindable
- Wet type water-cooled.

INNOVATIONS AND SPECIALTIES
On demand all wetted parts available with grade 304 or 316 stainless steel or bronze.
Executions for superior sand handling able to handle a tolerable quantity of sand.

INTELLIGENT CONTROL SYSTEMS
All pumps can be supplied with Protection and Control Boxes: Panel- Starters, Intelligent control systems, Electric-Electronic Controls Panels also with Variable Speed Inverters.

MOTOR SIZE
All pumps up to 7,5 HP included are fitted with 4-inch size electric motors;
Pumps with metallic impellers (cast iron or brass) all fitted with 6-inch size electric motors.
From 10 HP to 50 HP all pumps are fitted with 6-inch size electric motors.
From 60 HP onwards all pumps are fitted with 8-inch size electric motors.
